Brand Name: ZOZEN Boiler Co., Ltd.
Certification: ISO, CE, ASME
Model Number: DZL series
Minimum Order Quantity: 1 set
Price: Contact Us for Latest Price
Payment Terms: L/C, T/T
E-mail us: zhulin@zozen.com
WhatsApp:+86 18861589035
Detail Information
- Output: Steam
- Fuel Design: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.
- Steam Capacity: 2 ton, 4 ton, 6 ton, 8 ton, 10 ton
- Working Pressure: 1-2.5 MPa
- Rated Steam Temperature: 170℃- 225℃
- Warranty: 1 Year
- Structure: three-pass water-fire tube chain grate boiler
- Application: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital
- Style: Packaged boiler
- Design Efficiency: High Efficiency 83%

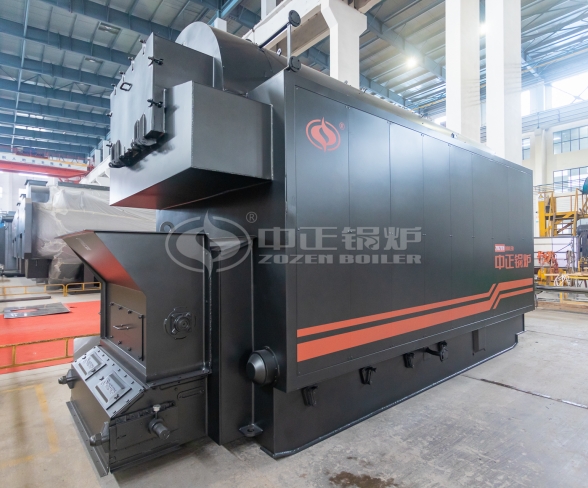

DZL Series Biomass-fired Steam Boiler Description
The DZL series quick-installed boiler is a horizontal three-pass water-fire tube chain grate boiler designed for biomass combustion. The boiler features a single drum layout with threaded smoke tubes for convective heating surface, and water-cooled walls on both sides of the drum for radiant heating surface. The combustion equipment adopts a lightweight chain grate, and the boiler is delivered in a complete quick-installed form. The electrical control system enables infinitely variable control of the grate, with alarm and interlock protection for critical parameters.
DZL Series Biomass-fired Steam Boiler Advantages
Product Parameters
| Model | Steam
Capacity |
Steam
Pressure |
Steam
Temperature |
Shipping
Dimension |
Heat
Efficiency |
| DZL2-1.25-SCIII | 2 t/h | 1.25 Mpa | 194 ºC | 5.30×2.40×3.40(m) | >83% |
| DZL2-1.6-SCIII | 2 t/h | 1.6 Mpa | 204 ºC | 5.30×2.40×3.40(m) | >83% |
| DZL2-2.5-SCIII | 2 t/h | 2.5 Mpa | 225 ºC | 5.30×2.40×3.40 (m) | >83% |
| DZL4-1.25-SCIII | 4 t/h | 1.25 Mpa | 194 ºC | 6.50×2.70×3.60(m) | >83% |
| DZL4-1.6-SCIII | 4 t/h | 1.6 Mpa | 204 ºC | 6.50×2.70×3.60 (m) | >83% |
| DZL4-2.5-SCIII | 4 t/h | 2.5 Mpa | 225 ºC | 6.50×2.70×3.60(m) | >83% |
ZOZEN Factory
ZOZEN is one of the best modern boiler manufacturers in China, our products include steam boilers, hot water boilers and thermal oil heaters. ZOZEN boiler is located in Wuxi, covers 150 thousand square meters of production area, equipped with first-class production equipment, passed the ISO9001:2015 international quality system certification. The company gained the “S” and “U” steel seal from ASME of US.
Pre-sale service:
- We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.
In-sale service:
- We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.
After-sale service:
- provide full range of original spare parts.
- Engineers abroad installation and commissioning service is available.
- Our engineers will held a training for boiler workers to ensure the safe operation.
- Free maintenance and repair for one year and lifelong service.
