RYQ series molten salt heater

November 14, 2024

RYQ series molten salt heater

Place of Origin: China
Brand Name: ZOZEN Boiler Co., Ltd.
Certification: ISO, CE, ASME
Model Number: RYQ series
Minimum Order Quantity: 1 set
Price: Contact Us for Latest Price
Payment Terms: L/C, T/T
E-mail us: zhulin@zozen.com
WhatsApp:+86 18861589035

Get Quotation Now!

Detail Information

  • Output: Heat medium of molten potassium nitrate and sodium nitrite
  • Fuel Design: Natural gas, liquefied gas, city gas, heavy oil, light oil, diesel, bituminous coal, anthracite, biomass particles
  • Thermal Capacity: 1200-35000 kW
  • Working Pressure: 0.8-1.6 MPa
  • Rated Steam Temperature: 450℃
  • Warranty: 1 Year
  • Structure: Vertical type boiler
  • Application: Chemical, fertilizer, melamine, aluminium oxide, solid caustic soda, solar power and other high temperature heating technology
  • Style: Packaged boiler
  • Design Efficiency: High Efficiency 95%

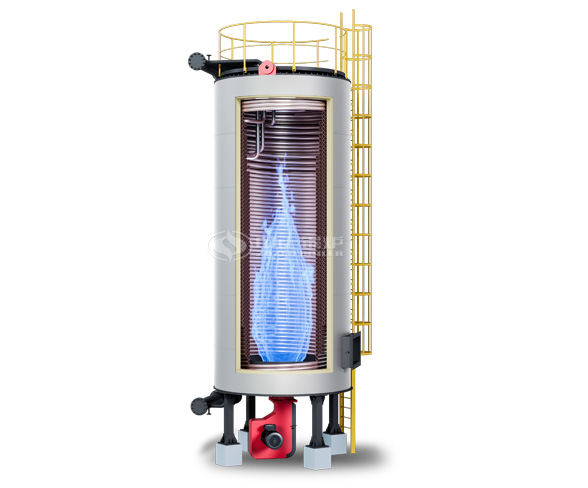

RYQ series molten salt heater Description

ZOZEN’s molten salt heaters utilize a heat medium of molten potassium nitrate and sodium nitrite. The heater elevates the molten salt beyond its melting point, enabling a circulation pump to propel it into a flowing and recyclable system. This medium is then further heated within the heat carrier furnace for continuous use. It typically operates between 400-550℃, with a maximum of up to 600℃.

RYQ series molten salt heater Advantages

RYQ series molten salt heater

Product Parameters

Model Rated thermal power (KW) Rated thermal power (×104kcal/h) Top media temperature (℃) Rated working pressure (MPa) Thermal efficiency (%)
RYL/Y(Q)-100Y(Q) 1200 100 450 1 95
RYL/Y(Q)-200Y(Q) 2400 200 450 1 95
RYL/Y(Q)-300Y(Q) 3500 300 450 1 95
RYL/Y(Q)-500Y(Q) 6000 500 450 1 95
RYL/Y(Q)-750Y(Q) 9000 750 450 1 95
RYL/Y(Q)-1000Y(Q) 12000 1000 450 1 95
RYL/Y(Q)-1250Y(Q) 14000 1250 450 1 95
RYL/Y(Q)-1500Y(Q) 18000 1500 450 1 95
RYL/Y(Q)-1750Y(Q) 20000 1750 450 1 95
RYL/Y(Q)-2000Y(Q) 24000 2000 450 1 95
RYL/Y(Q)-2500Y(Q) 30000 2500 450 1 95
RYL/Y(Q)-3000Y(Q) 35000 3000 450 1 95

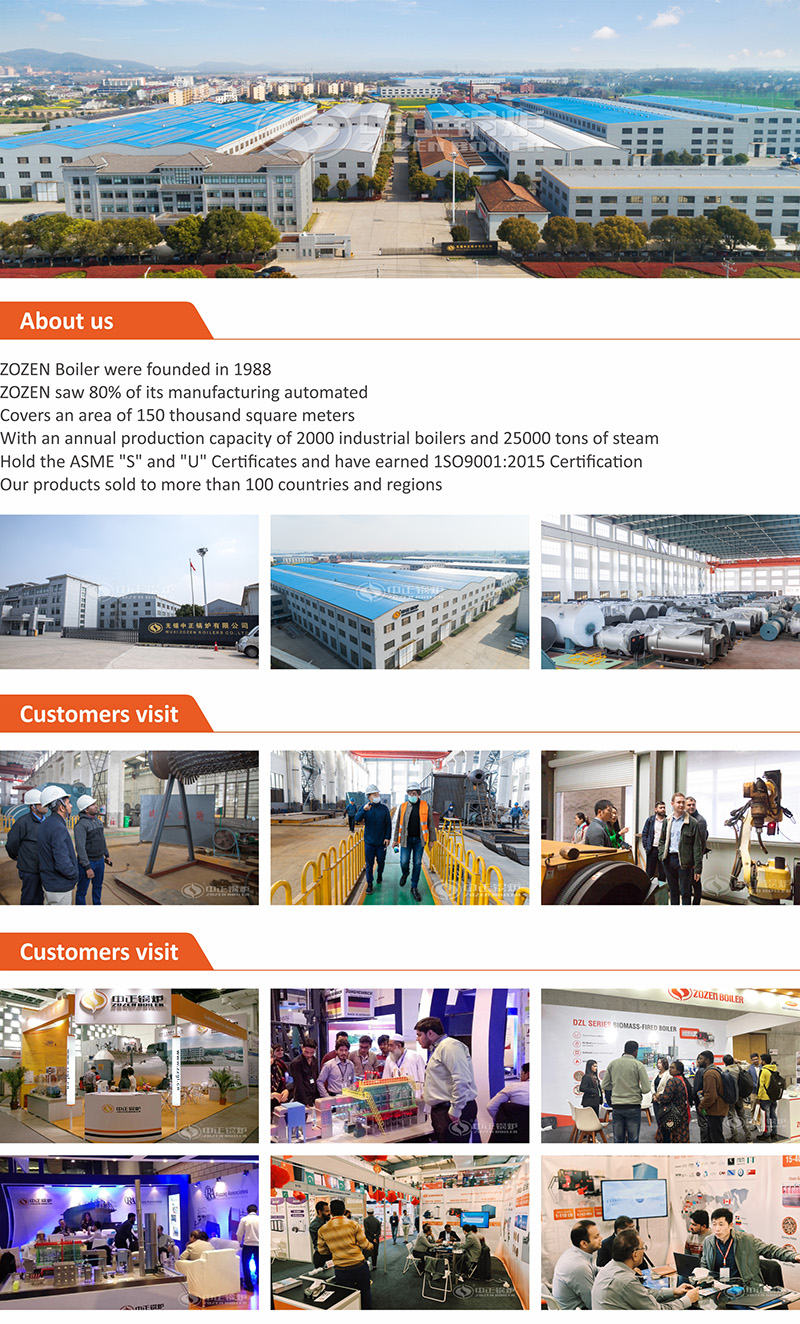

ZOZEN Factory

ZOZEN is one of the best modern boiler manufacturers in China, our products include steam boilers, hot water boilers and thermal oil heaters. ZOZEN boiler is located in Wuxi, covers 150 thousand square meters of production area, equipped with first-class production equipment, passed the ISO9001:2015 international quality system certification. The company gained the “S” and “U” steel seal from ASME of US.

Introduction about ZOZEN Boiler

Pre-sale service:

  • We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.

In-sale service:

  • We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.

After-sale service:

  • provide full range of original spare parts.
  • Engineers abroad installation and commissioning service is available.
  • Our engineers will held a training for boiler workers to ensure the safe operation.
  • Free maintenance and repair for one year and lifelong service.
