SZS Series Gas(Oil) Fired Hot Water Boiler

December 18, 2024

SZS Series Gas(Oil) Fired Hot Water Boiler

Place of Origin: China
Brand Name: ZOZEN Boiler Co., Ltd.
Certification: ISO, CE, ASME
Model Number: SZS series
Minimum Order Quantity: 1 set
Price: Contact Us for Latest Price
Payment Terms: L/C, T/T
E-mail us: zhulin@zozen.com
WhatsApp:+86 18861589035

Get Quotation Now!

Detail Information

Product Name: Water tube boiler
Output: Hot Water
Fuel Design: Natural gas, coke oven gas, blast furnace gas, carbon black tail gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Thermal capacity: 7-116 MW
Working pressure: 1-1.6 MPa
Warranty: 1 Year
Structure: horizontal boiler
Application: Heat supplying, hospital, colleges and universities.
Style: Packaged boiler
Design Efficiency: High Effciency 95%

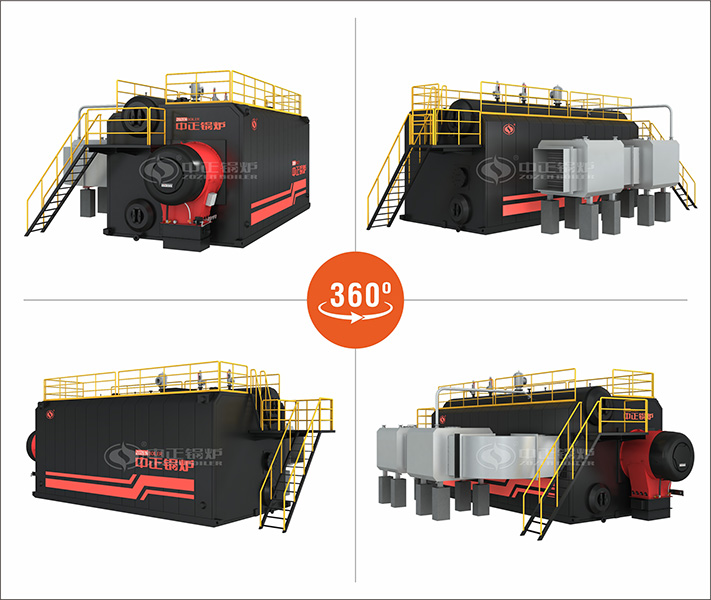

More Details of SZS Series Hot Water Boiler

More Details of SZS Series Hot Water Boiler

SZS Series Hot Water Boiler Working Principle

SZS Series Hot Water Boiler Working Principle

SZS series boiler is double drums, longitudinal arranged, “D” type chamber structure. Furnace is on right side and convection tube bundle is on the left. The body is fixed on the basement by middle and both end flexible supports and make the boiler to expand horizontally to sideways. Around furnace is membrane water cooling tube wall. Furnace and tube bundle is totally separated by the membrane water wall at the left side of the furnace. The back part of bundle is sparse shift structure, front part is aligned structure. Smoke from furnace outlet enters re-burning chamber, bundle area, and then from left front part enters spiral fin coil economizer and condenser, finally discharged to atmosphere through chimney.

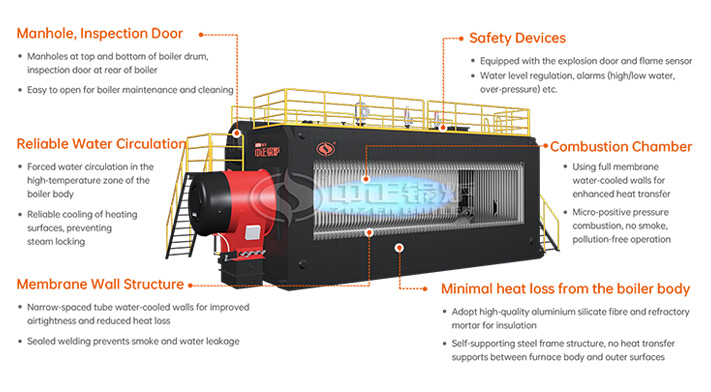

SZS Series Hot Water Boiler Advantages

WNS Series Gas Oil Skid-mounted Steam Boiler Advantages

SZS Series Hot Water Boiler Parameters

Model Rated thermal power (MW) Rated working pressure (MPa) Rated output water temperature (℃) Rated Feeding water temperature (℃) Maximum transport dimension (m) Heat

Efficiency
SZS7-1.0/115/70-Q(Y) 7.0 1.0 115 70 7.58×3.85×3.75 >95%
SZS10.5-1.0/115/70-Q(Y) 10.5 1.0 115 70 7.91×3.85×3.75 >95%
SZS14-1.25/115/70-Q(Y) 14.0 1.25 115 70 8.31×3.85×3.75 >95%
SZS17.5-1.25/115/70-Q(Y) 17.5 1.25 115 70 9.31×3.85×3.75 >95%
SZS21-1.25/130/70-Q(Y) 21.0 1.25 130 70 10.30×4.23×4.13 >95%
SZS29-1.25/130/70-Q(Y) 29.0 1.25 130 70 11.10×4.32×4.13 >95%
SZS46-1.6/130/70-Q(Y) 46.0 1.6 130 70 11.30×4.09×3.89
11.40×2.85×4.20		 >95%
SZS58-1.6/130/70-Q(Y) 58.0 1.6 130 70 11.40×4.29×4.10
11.4×3.15×4.20		 >95%
SZS70-1.6/130/70-Q(Y) 70.0 1.6 130 70 12.00xΦ1.66 >95%
SZS116-1.6/130/70-Q(Y) 116.0 1.6 130 70 12.50xΦ1.66 >95%



ZOZEN Factory

ZOZEN is one of the best modern boiler manufacturers in China, our products include steam boilers, hot water boilers and thermal oil heaters. ZOZEN boiler is located in Wuxi, covers 150 thousand square meters of production area, equipped with first-class production equipment, passed the ISO9001:2015 international quality system certification. The company gained the “S” and “U” steel seal from ASME of US.

Introduction about ZOZEN Boiler

Pre-sale service:

  • We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.

In-sale service:

  • We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.

After-sale service:

  • provide full range of original spare parts.
  • Engineers abroad installation and commissioning service is available.
  • Our engineers will held a training for boiler workers to ensure the safe operation.
  • Free maintenance and repair for one year and lifelong service.
